Stairs modular CORA model Maxima L-90 13 elements / 14 levels

The stairs are made of steel with a black matt structure (RAL 9005)  and solid wood. The color of the wood can be selected on the basis of a color palette. The whole can be professionally mounted by the manufacturer. A set of 13 elements adapted for self-assembly by the customer.

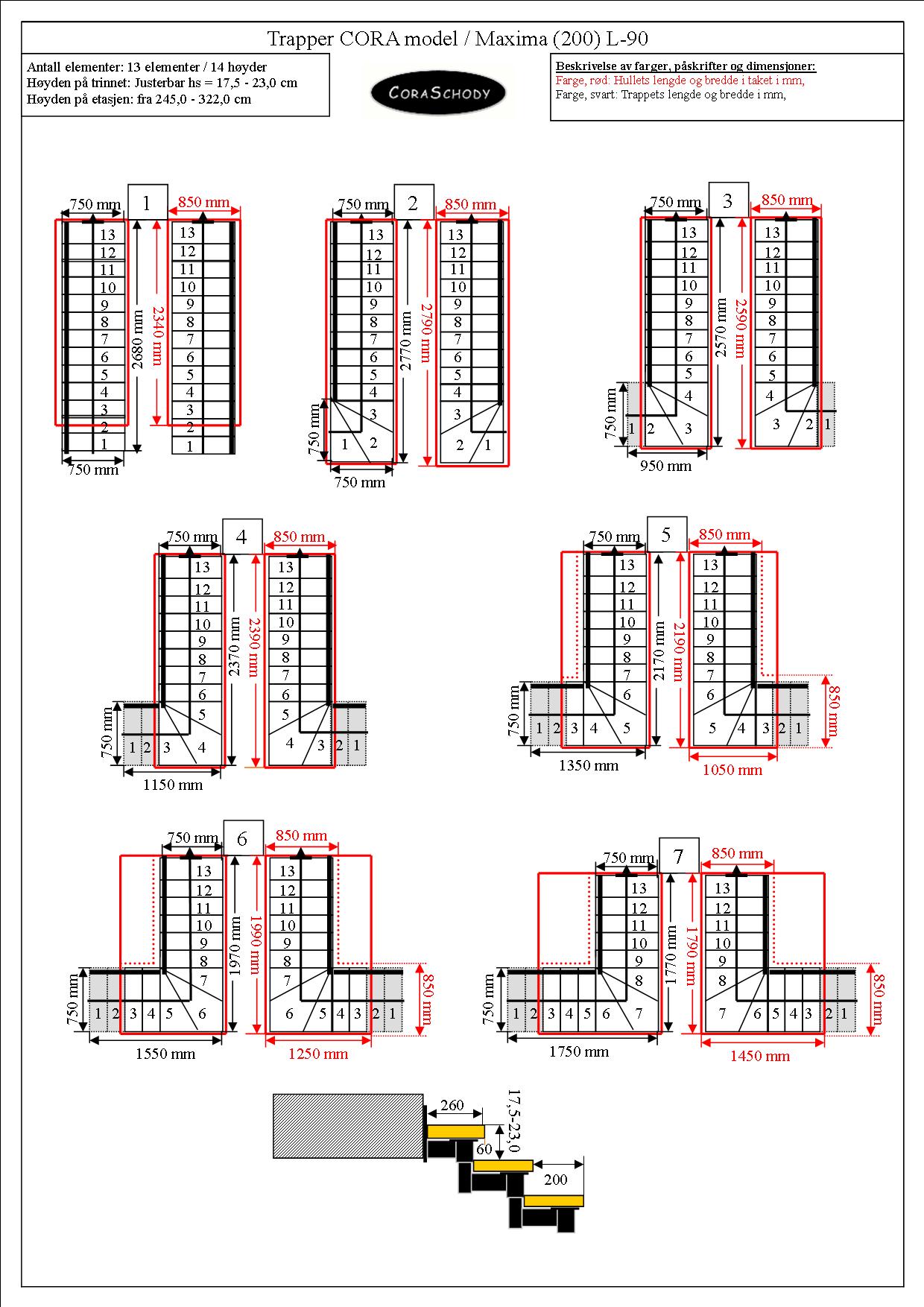

It is possible to create one of 26 stair layouts. L-90 torsion surgery, running to the right or to the left, is an original procedure for this model, but you can also order straight stairs. The stairs have 13 elements in the set, which constitute 14 levels of the structure after assembly.

The recommended assembly of stairs of stairs from modules is based on the use of metal anchors in the wall running no more than 5 cm from the structure. If the wall is too weak, rest the stairs on the support column. The free-standing construction requires the assembly of a double-sided railings.

Application: internal stairs (inside the building)

Bearing capacity: maximum load on the degree of 190 kg

Weight: a set of steps / a set of 13 elements 200 kg

Type: staircase one beam (Modular)

Type of use: modular stairs, universal setting and application, straight, left, right,

Type of rooms: for small, medium and large rooms

Configuration systems: possible to use the stairs 26 systems

Guaranteed: For the entire set. stairs 24 months

Type railings: horizontal rails

Manufacturer: Polish manufacturer of modular stairs, metal system CORA



Examples of height



Height: from 245 to 322 cm

Amount of elements: 13 pieces step / 14 levels (an upper level below the top of the floor)

Step height: control of 17,5 / 23,0 cm

The size of the step: 260 (200 + 60) mm

Thickness of the step: 40 mm

The hole in the lingcei: 850 x 2390 mm minimum,

The width of the stairs:

Type of construction: Modular metal 200

Metal color: black matt structure (RAL 9005)

Wood type: Beech solid

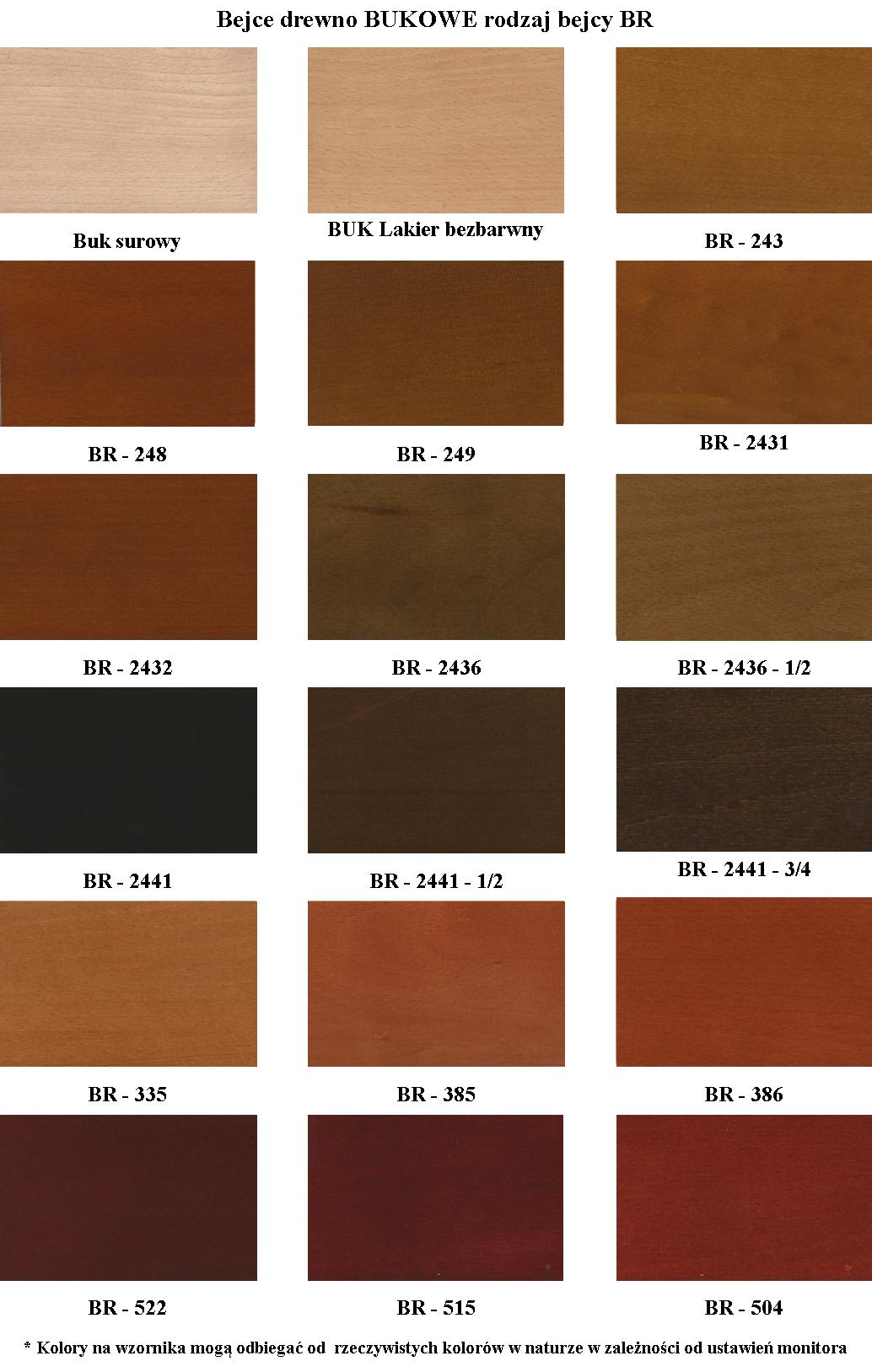

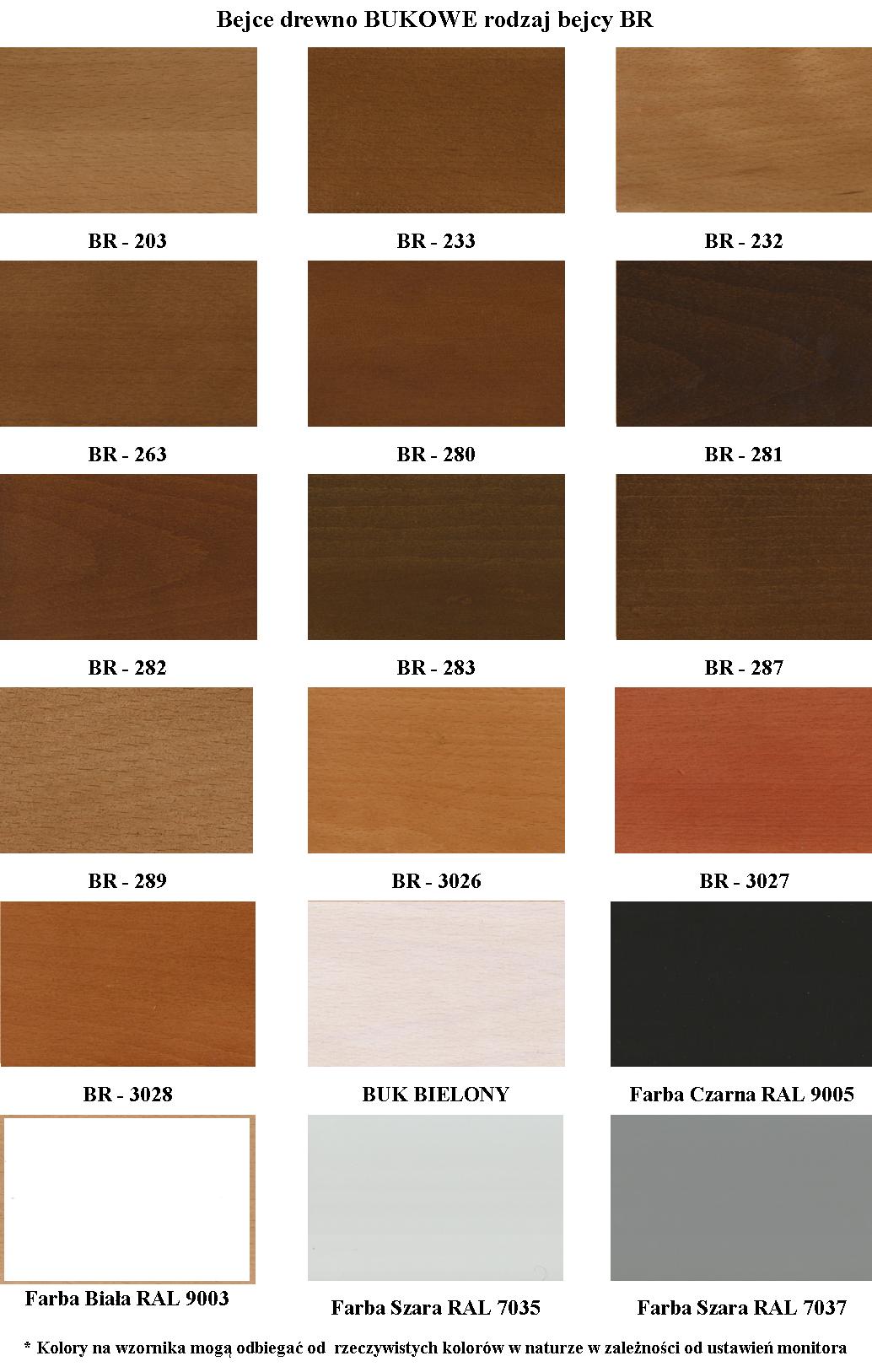

Wood finish (color): Illustrative image (on beech / natural beech lacquer) or other colors from the wood color palette or matte paint acc. RAL Files to Download

Railings-sided: in a typical set-sided railing from the first stage to the upper

Description railings:

If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail: post@coratrapp.no
We will prepare a special offer and send to e-mail.
Completion date:
- Delivery without assembry - 2 / 3 weeks
- Delivery assembly - 3 / 6 weeks
Contact: technical advice directly
In hours: 9.00 til 20.00 hours
