Stairs modular CORA model Gaza Extra 120 14 elements / 15 levels

Stairs in this model are created in such a way that - according to the client's needs - have a left, right or straight surgery. Their assembly is possible depending on the client's concept, and also independent.

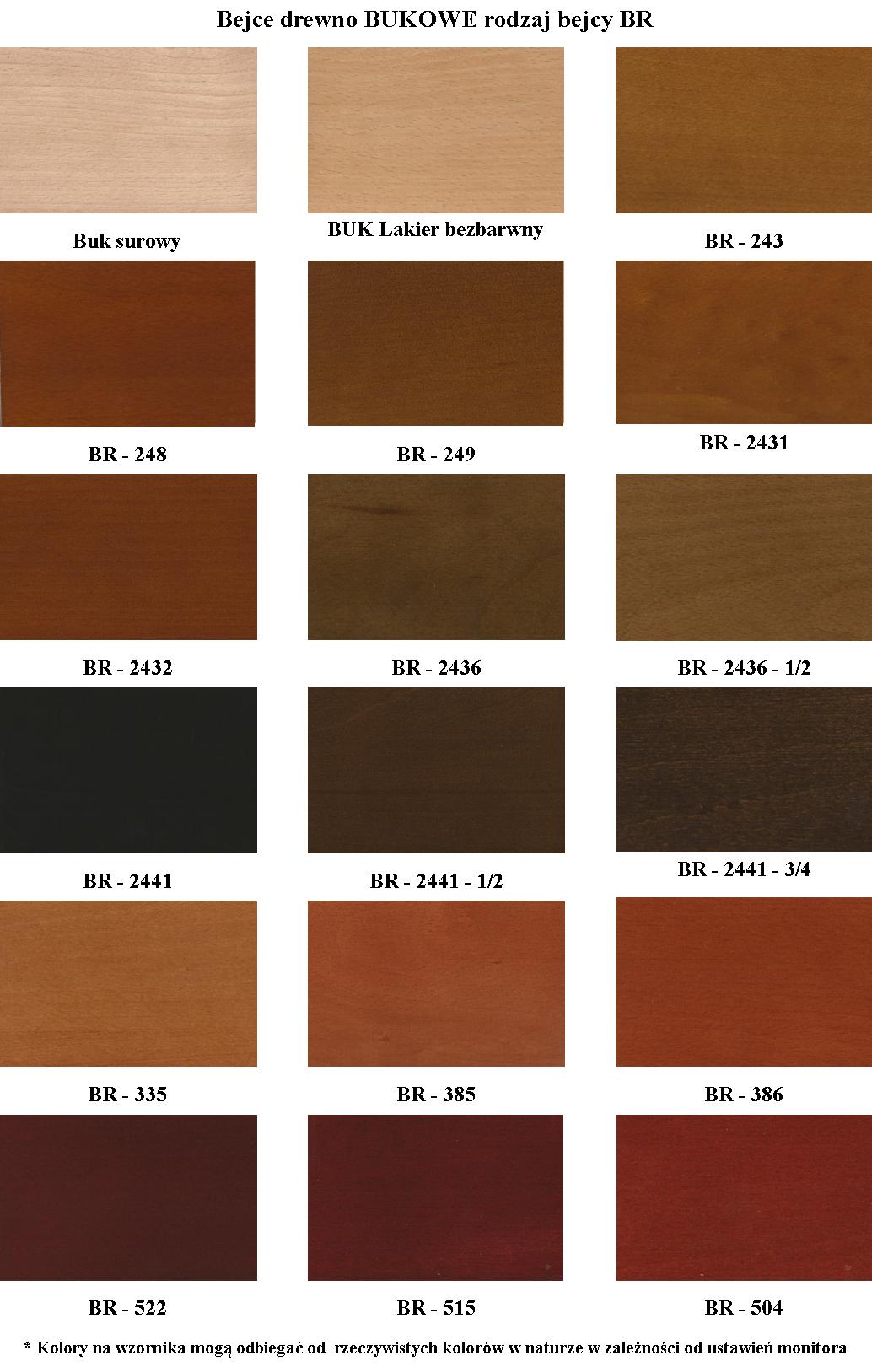

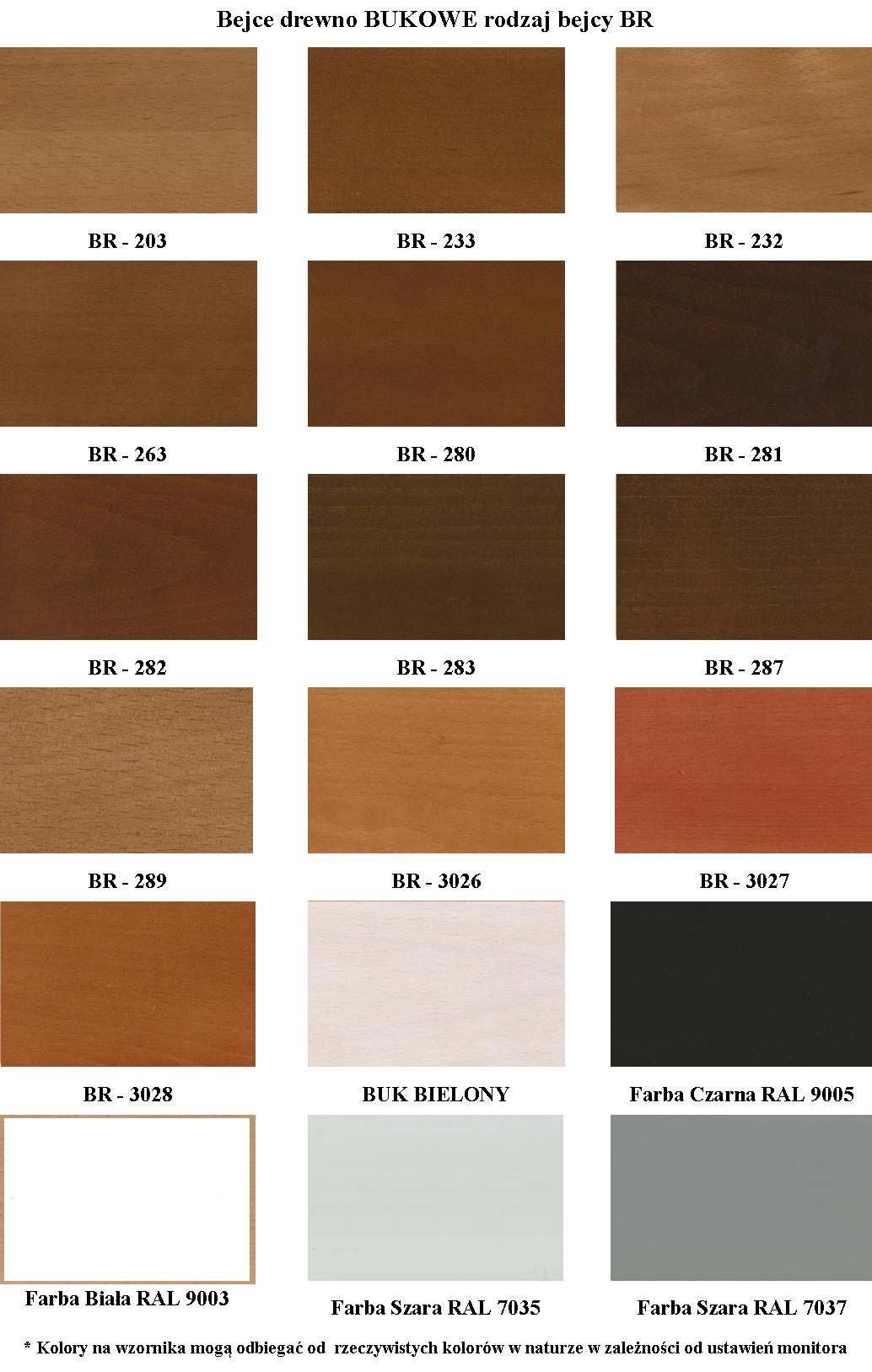

The set of stairs contains 14 elements, which is 15 levels of construction. The stairs have elements made of solid wood in white matte and other colors to choose from the color palette, as well as steel with a white matte color. The whole can be mounted by the manufacturer if the customer orders the appropriate service in the country.

The manufacturer recommends the assembly of stairs based on anchors, one side at the wall, 5 cm from it. If anchoring is not possible, a support pole should be used. In the case of free-standing stairs, for safety reasons, it is recommended to use both a supporting column and a double-sided railings.



Application: internal stairs (inside the building)

Bearing capacity: maximum load on the degree of 120 kg

Weight: a set of steps / a set of 14 elements 95 kg

Type: staircase one beam (Modular)

Type of use: modular stairs, universal setting and application,

Type of rooms: for small, medium and large rooms

Configuration systems: Stair treatment: straight, left or right

Guaranteed: For the entire set. stairs 24 months

Type railings: horizontal rails

Manufacturer: Polish manufacturer of modular stairs, metal system CORA



Examples of height
Floor to floor 198 - 253 cm - 10 steps / 11 height (- 4 step)
Floor to floor 216 - 276 cm - 11 steps / 12 height (- 3 step)
Floor to floor 234 - 299 cm - 12 steps / 13 height (- 2 steg)
Floor to floor 252 - 322 cm - 13 steps / 14 height (- 1 step)
Floor to floor 270 - 345 cm - 14 steps / 15 height (Standard)
Floor to floor 288 - 368 cm - 15 steps / 16 height (+ 1 step)





Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.

Completion date:
- Delivery without assembly 2 / 3 weeks
Contact: technical advice directly
In hours: 9.00 til 20.00 hours Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
