Stairs model Mix Plus 02 L-90 15 elements
Featured
Stairs model Mix Plus 02 L-90 15 elements
- Units in box: 1
Hole, in the ceiling-minimal: 900 x 3040 mm + other sizes, Height: 280,0-363,0 cm, Width of stairs L-90: 800 / 800 mm, P: 800 mm. Height of the step: adjustable 17,5 / 23,0 cm, Configuration: 30 stair systems are possible,
- Description
- Reviews
- Attachment
- Specification
- Catalog
Stairs modular CORA model Mix Plus 02 L-90 15 elements / 16 levels
Stairs prepared for self-assembly by the customer. The set contains 15 elements made of solid wood and satin stainless steel. The color of the wood is possible to choose from based on the rich palette of the manufacturer's colors.
Modular stairs have a set of 15 elements in the set, which after assembly can be set in one of 30 systems offered by the manufacturer for this model. All elements form 16 levels of construction. The stairs have a L-90 twist movement towards the left or right. After proper selection, you can also order a simple procedure.
It is good to mount the stairs one-sided at the wall, 5 cm to it, to base the whole on the anchors. If this is not possible, it is necessary to use a supporting column - also in free-standing stairs. In the last case, security considerations require assembly of stairs of a double-sided railings. It is possible to purchase the assembly service from the manufacturer.
Stairs prepared for self-assembly by the customer. The set contains 15 elements made of solid wood and satin stainless steel. The color of the wood is possible to choose from based on the rich palette of the manufacturer's colors.
Modular stairs have a set of 15 elements in the set, which after assembly can be set in one of 30 systems offered by the manufacturer for this model. All elements form 16 levels of construction. The stairs have a L-90 twist movement towards the left or right. After proper selection, you can also order a simple procedure.
It is good to mount the stairs one-sided at the wall, 5 cm to it, to base the whole on the anchors. If this is not possible, it is necessary to use a supporting column - also in free-standing stairs. In the last case, security considerations require assembly of stairs of a double-sided railings. It is possible to purchase the assembly service from the manufacturer.
Description and Technical Parameter
Application: internal stairs (inside the building)
Bearing capacity: maximum load on the degree of 200 kg
Weight: a set of steps / a set of 15 elements 230 kg
Type: staircase one beam (Modular)
Type of use: modular stairs, universal setting and application, straight, left, right,
Type of rooms: for small, medium and large rooms
Configuration systems: possible to use the stairs 30 systems
Guaranteed: For the entire set. stairs 24 months
Type railings: horizontal rails
Manufacturer: Polish manufacturer of modular stairs, metal system CORA
Examples of height
Floor to floor 193 - 253 cm - 10 steps / 11 height (- 5 step)
Floor to floor 210 - 276 cm - 11 steps / 12 height (- 4 step)
Floor to floor 228 - 299 cm - 12 steps / 13 height (- 3 step)
Floor to floor 245 - 322 cm - 13 steps / 14 height (- 2 step)
Floor to floor 263 - 345 cm - 14 steps / 15 height (- 1 step)
Floor to floor 280 - 368 cm - 15 steps / 16 height (Standard)
Floor to floor 210 - 276 cm - 11 steps / 12 height (- 4 step)
Floor to floor 228 - 299 cm - 12 steps / 13 height (- 3 step)
Floor to floor 245 - 322 cm - 13 steps / 14 height (- 2 step)
Floor to floor 263 - 345 cm - 14 steps / 15 height (- 1 step)
Floor to floor 280 - 368 cm - 15 steps / 16 height (Standard)
Description, Technical
Height: from 280 to 368 cm
Amount of elements: 15 pieces step /16 levels (an upper level below the top of the floor)
Step height: control of 17,5 / 23,0 cm
The size of the step: 280 (220 + 60) mm
Thickness of the step: 40 mm
The hole in the lingcei: minimum 900 x 3040 mm,
The width of the stairs:
- treatment simply: P - 800 mm,
- torsion treatment L-90: 800 / 800 mm
Type of construction: Modular metal 220
Metal color: steel satin (edesthal)
Wood type: Beech solid
Wood finish (color): Illustrative image (on beech, Oranż br-3024) or other colors from the wood color palette or matte paint acc. RAL
Railings-sided: in a typical set-sided railing from the first stage to the upper
Description railings:
Post 25 mm,
Filling stainless steel rods cut (5 pcs.),
Wood handrail 50 mm
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
Completion date:
- Delivery without installation - 2 / 3 weeks
- Delivery assembly - 3 / 6 weeks
Contact: technical advice directly
In hours: 9.00 til 20.00 hours Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
There are yet no reviews for this product.
Paleta kolorów drewna
NO. Paletten av farger tre
SE. Paletten av färger trä
GB.The palette of colors wood
Konfiguracja układ schodów
NO. Konfigurasjon av systemer trapper
SE. Konfigurasjon av trappoppsett

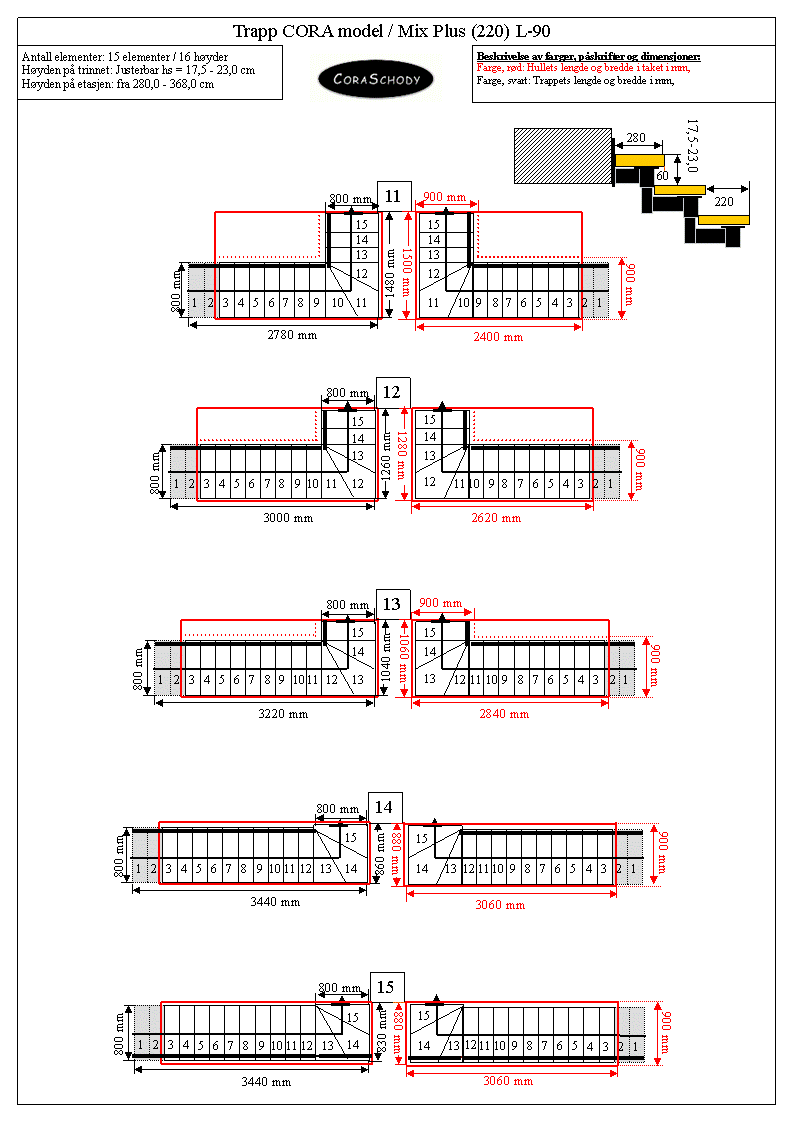

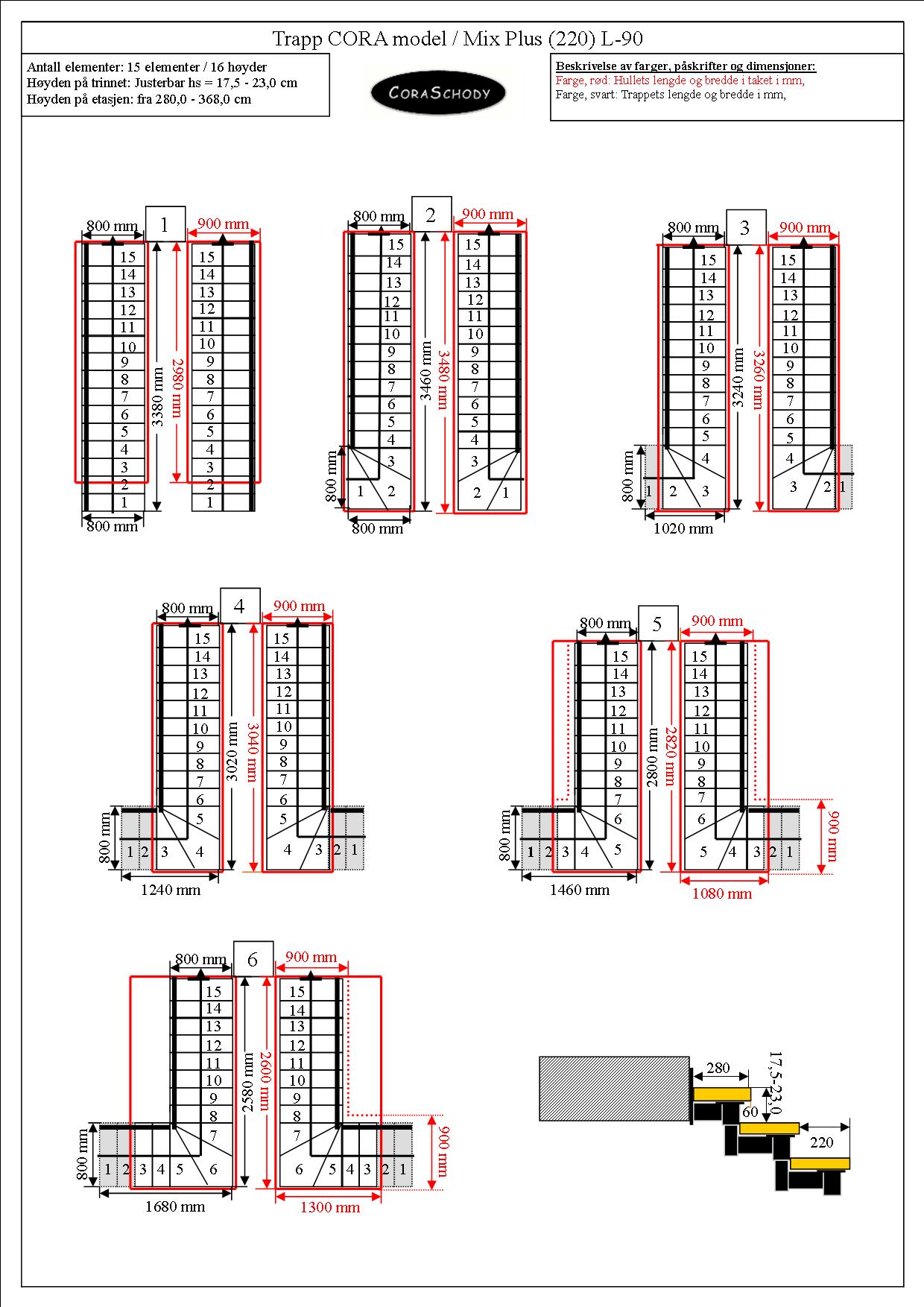

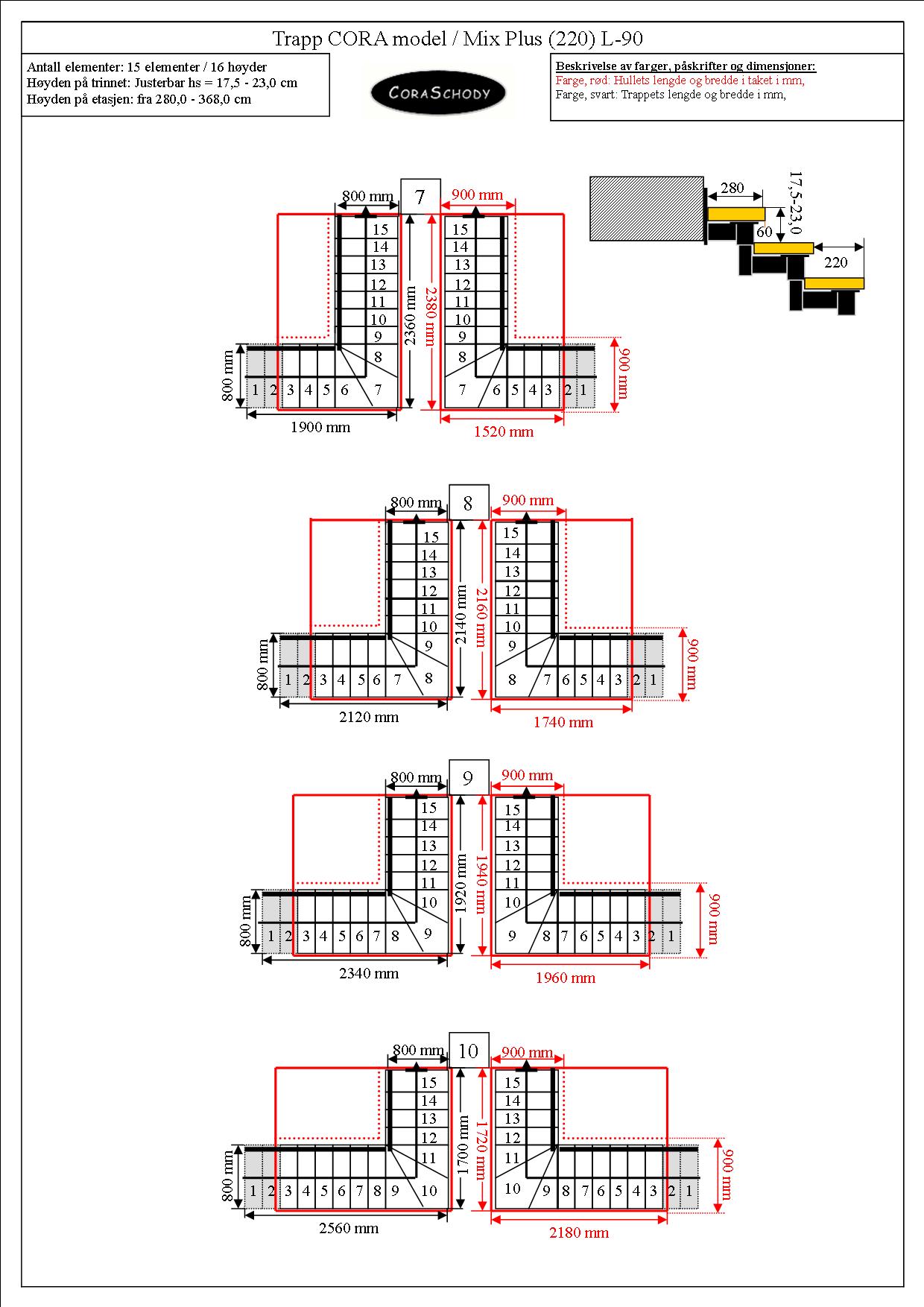

GB. Configuration of stair layouts
PL. Ulotka
NO. Pakningsvedlegget
SE. Bipacksedel
GB. Leaflet
