Model Bavaria 03 S 140 cm
Model Bavaria 03 S 140 cm
- Units in box: 1
Hole in the ceiling-minimal: round 140 cm, square 140x140 cm, the height of the stairs 260.0-299,0 cm (landing flush with the upper floor), the height of the stairs 280,0-322,0 cm (landing below the upper floor), height solid step 20,0 / 23,0 cm, width of usable use 600 mm (between the column and the railing, stair operation: left or right
- Description
- Reviews
- Attachment
- Specification
- Catalog

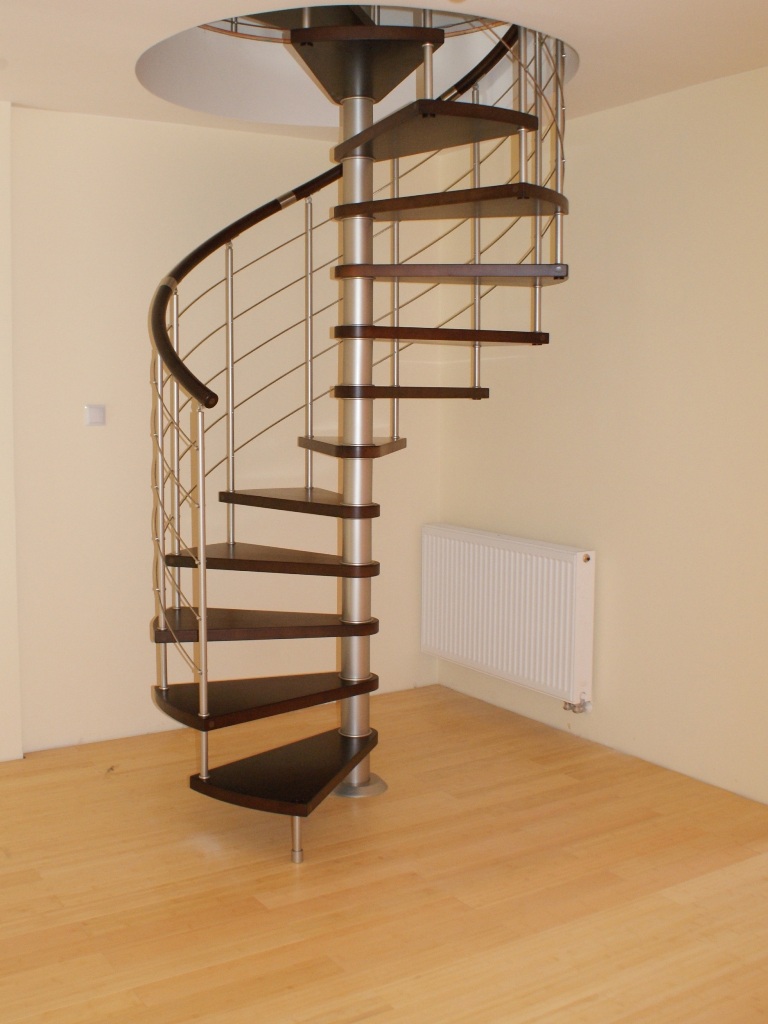

Spiral spiral staircase CORA model Bavaria 03 S 140 cm - 13 elements (12 pcs. +1 landing)
A set of metal, wooden spiral stairs, made of solid wood with a color to choose from the manufacturer's color palette, as well as steel in satin steel. The stairs have been designed for self-assembly by the customer, although it is possible to order the assembly service. The set is suitable for mounting in a ceiling opening with a diameter / side of 150 cm.
Stairs with a triangular landing are adapted to the circular and square hole in the ceiling. The stairs with a trapezoidal landing match the square opening in the ceiling. It is possible to order stairs in the right and left surgery. Thanks to the universal form, the stairs can be assembled in many configurations.
In order to order stairs, specify the height from the floor along with the ceiling (floor height, floor / upper floor.) With custom dimensions of the room it is possible to order stairs atypical size.
Polish producer of spiral, winding and spiral stairs CORA
Available sizes of stairs are 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 and more
Load carrying capacity: 210 kg load per one step.
Stair treatment: left-handed or clockwise looking from the first step
Technical parameters
Opening in the ceiling - minimal
Stairs with a diameter of 140 cm can be used for:
round hole 150 cm,
square hole 150x150 cm, rectangular hole (but shorter side larger than the diameter of stairs by 10 cm)
directly adjacent to the mezzanine,
storey height: from 260/322 cm
standard - the number of elements: 12 pcs. step + 1 landing = 13 pieces,
The platform can be used:
- at the height of the storey: from 260 cm to 299 cm (13 elements / 13 levels) / landing flush with the upper floor,
- at the storey height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: unregulated fixed 20,0 / 23,0 cm,
width of the step: usable 600 mm (between the column and the railing),
Types of landing
To the hole:
- round: fi 140 cm - triangular landing,
- square: 140 x 140 cm - triangular, trapezoidal landing,
Bavaria Model 03 S 140 cm
Technical description
number of elements: 13 pieces (12 pcs. steps + 1 landing)
storey height: 260.0 / 322.0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
thickness of the step: 40 mm
usable width: 600 mm
type of wood: solid beech
wood color: (reference photo of wood color Orzech Br-281). You can choose a different color from the color palette in the price of stairs,
metal color: steel satin (edesthal)
central column cover: metal
One-sided railing + on the landing
posts (metal) 25 mm
let in a degree
filling the rod with stainless steel (5 pcs)
handrail curved 50 mm
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
CONTACT - tekniske rad:
Til tider: 9.00 til 20.00 h. Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
A set of metal, wooden spiral stairs, made of solid wood with a color to choose from the manufacturer's color palette, as well as steel in satin steel. The stairs have been designed for self-assembly by the customer, although it is possible to order the assembly service. The set is suitable for mounting in a ceiling opening with a diameter / side of 150 cm.
Stairs with a triangular landing are adapted to the circular and square hole in the ceiling. The stairs with a trapezoidal landing match the square opening in the ceiling. It is possible to order stairs in the right and left surgery. Thanks to the universal form, the stairs can be assembled in many configurations.
In order to order stairs, specify the height from the floor along with the ceiling (floor height, floor / upper floor.) With custom dimensions of the room it is possible to order stairs atypical size.
Polish producer of spiral, winding and spiral stairs CORA
Available sizes of stairs are 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 and more
Load carrying capacity: 210 kg load per one step.
Stair treatment: left-handed or clockwise looking from the first step
Technical parameters
Opening in the ceiling - minimal
Stairs with a diameter of 140 cm can be used for:
round hole 150 cm,
square hole 150x150 cm, rectangular hole (but shorter side larger than the diameter of stairs by 10 cm)
directly adjacent to the mezzanine,
storey height: from 260/322 cm
standard - the number of elements: 12 pcs. step + 1 landing = 13 pieces,
The platform can be used:
- at the height of the storey: from 260 cm to 299 cm (13 elements / 13 levels) / landing flush with the upper floor,
- at the storey height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: unregulated fixed 20,0 / 23,0 cm,
width of the step: usable 600 mm (between the column and the railing),
Types of landing
To the hole:
- round: fi 140 cm - triangular landing,
- square: 140 x 140 cm - triangular, trapezoidal landing,
Bavaria Model 03 S 140 cm
Technical description
number of elements: 13 pieces (12 pcs. steps + 1 landing)
storey height: 260.0 / 322.0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
thickness of the step: 40 mm
usable width: 600 mm
type of wood: solid beech
wood color: (reference photo of wood color Orzech Br-281). You can choose a different color from the color palette in the price of stairs,
metal color: steel satin (edesthal)
central column cover: metal
One-sided railing + on the landing
posts (metal) 25 mm
let in a degree
filling the rod with stainless steel (5 pcs)
handrail curved 50 mm
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
CONTACT - tekniske rad:
Til tider: 9.00 til 20.00 h. Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
