MODEL BAVARIA S 150 CM
MODEL BAVARIA S 150 CM
- Units in box: 1
Hole in the ceiling-minimal: round 160 cm, square 160x160 cm, the height of the stairs 260.0-299,0 cm (landing flush with the upper floor), the height of the stairs 280,0-322,0 cm (landing below the upper floor), height solid step 20,0 / 23,0 cm, width of usable use 650 mm (between the column and the railing, stair operation: left or right
- Description
- Reviews
- Attachment
- Specification
- Catalog
Spiral stairs CORA model Bavaria S 150 cm - 13 elements (12 pcs.+1 landing)
Spiral stairs made by a Polish producer of beech wood (color to choose from) and steel with black, matte finish. The stairs are adapted for self-assembly in a hole in the ceiling with a diameter / side of 160 cm. In the country, the manufacturer provides professional assembly on request.
Available sizes of stairs are 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 and more
Load carrying capacity: 220 kg load per one step.
Stair treatment: left-handed or clockwise looking from the first step
Technical parameters
Opening in the ceiling - minimal
Stairs with a diameter of 150 cm can be used for:
round hole 160 cm,
square hole 160x160 cm, rectangular hole (but shorter side larger than the diameter of stairs by 10 cm)
directly adjacent to the mezzanine,
storey height: from 260/322 cm
standard - the number of elements: 12 pcs. step + 1 landing = 13 pieces,
The platform can be used:
- at the height of the storey: from 260 cm to 299 cm (13 elements / 13 levels) / landing flush with the upper floor,
- at the storey height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: unregulated fixed 20,0 / 23,0 cm,
width of the step: usable 650 mm (between the column and the railing),
Types of landing
To the hole:
- round: 160 cm - triangular landing,
- square: 160 x 160 cm - triangular, trapezoidal landing,
Model Bavaria S 150 cm
Technical description
number of elements: 13 pieces (12 pcs. steps + 1 landing)
storey height: 260.0 / 322.0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
thickness of the step: 40 mm
usable width: 650 mm
type of wood: solid beech
wood color: (pictorial photo of the color of natural beech wood, varnish). You can choose a different color from the color palette in the price of stairs,
metal color: black matt structure (RAL 9005)
central column cover: metal
One-sided railing + on the landing
posts (metal) 25 mm
let in a degree
filling the rod with stainless steel (5 pcs)
handrail curved 50 mm
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
CONTACT - tekniske rad:
Til tider: 9.00 til 20.00 h. Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
There are two types of platforms: triangular, adapted to the opening in the square and round ceiling, and trapezoidal, for the square hole. The model of stairs has both left and right treatment, that's why many assembly concepts are possible due to the universal form of these stairs.
The stairs are adjusted only after the ordering of the height at which the platform is to be located - flush with the floor on the upper ceiling. Non-standard orders are possible to implement in consultation with the manufacturer, after sending the appropriate projections of the room where the stairs are to be located.
Polish producer of spiral, winding and spiral stairs CORAAvailable sizes of stairs are 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 and more
Load carrying capacity: 220 kg load per one step.
Stair treatment: left-handed or clockwise looking from the first step
Technical parameters
Opening in the ceiling - minimal
Stairs with a diameter of 150 cm can be used for:
round hole 160 cm,
square hole 160x160 cm, rectangular hole (but shorter side larger than the diameter of stairs by 10 cm)
directly adjacent to the mezzanine,
storey height: from 260/322 cm
standard - the number of elements: 12 pcs. step + 1 landing = 13 pieces,
The platform can be used:
- at the height of the storey: from 260 cm to 299 cm (13 elements / 13 levels) / landing flush with the upper floor,
- at the storey height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: unregulated fixed 20,0 / 23,0 cm,
width of the step: usable 650 mm (between the column and the railing),
Types of landing
To the hole:
- round: 160 cm - triangular landing,
- square: 160 x 160 cm - triangular, trapezoidal landing,
Model Bavaria S 150 cm
Technical description
number of elements: 13 pieces (12 pcs. steps + 1 landing)
storey height: 260.0 / 322.0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
thickness of the step: 40 mm
usable width: 650 mm
type of wood: solid beech
wood color: (pictorial photo of the color of natural beech wood, varnish). You can choose a different color from the color palette in the price of stairs,
metal color: black matt structure (RAL 9005)
central column cover: metal
One-sided railing + on the landing
posts (metal) 25 mm
let in a degree
filling the rod with stainless steel (5 pcs)
handrail curved 50 mm
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
CONTACT - tekniske rad:
Til tider: 9.00 til 20.00 h. Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
There are yet no reviews for this product.

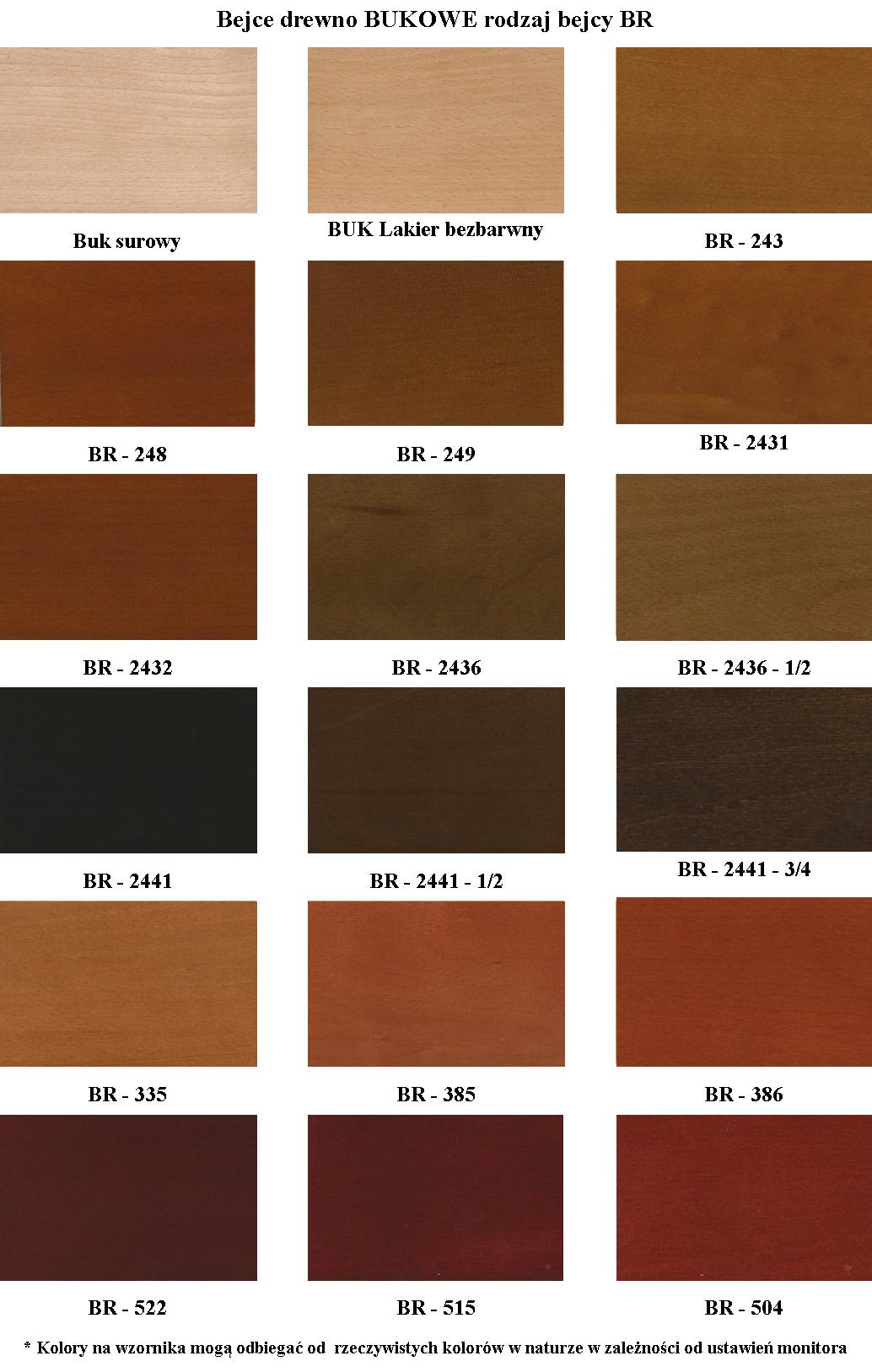

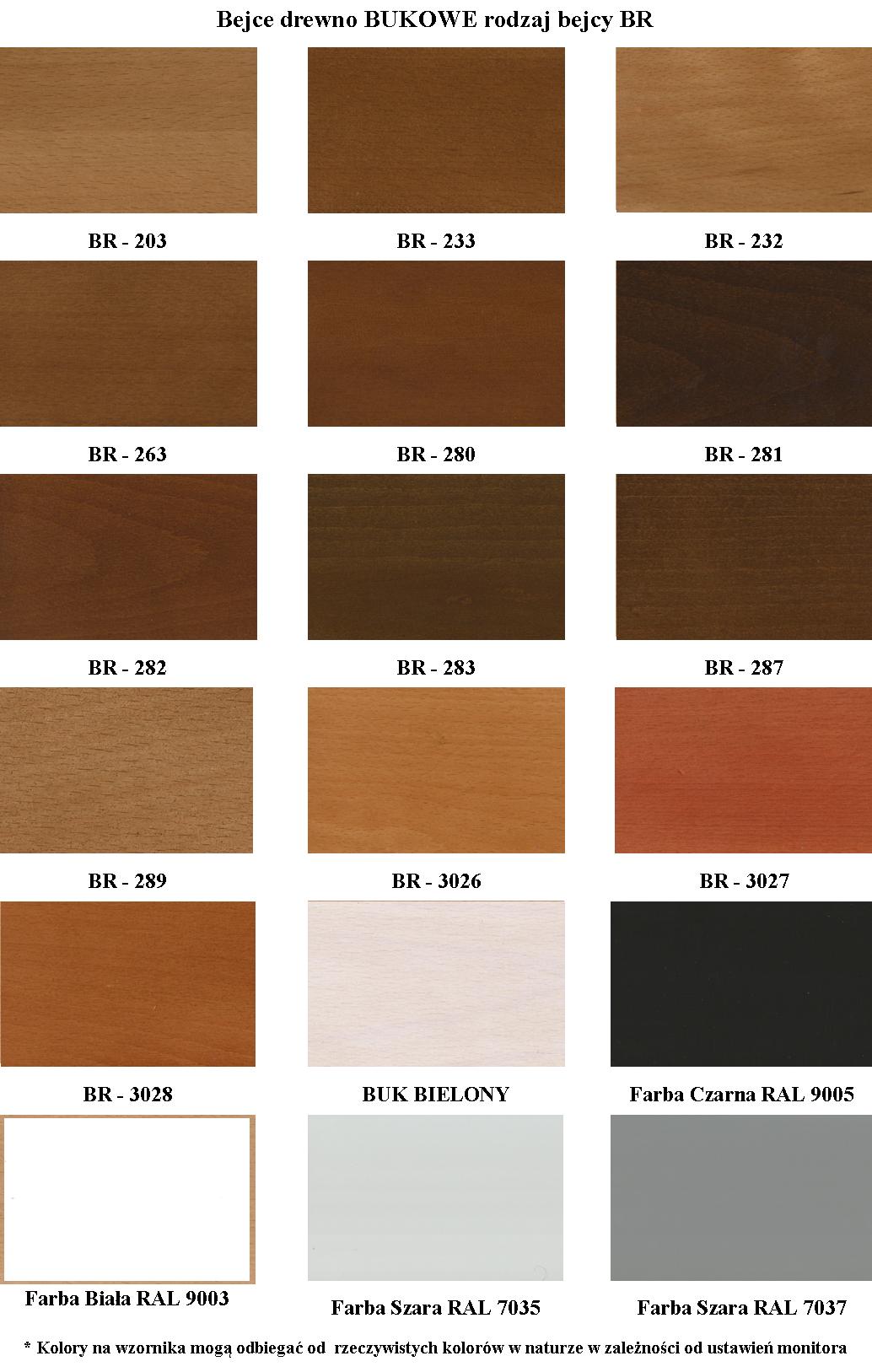

PL. Paleta kolorów drewna
NO. Paletten av farger tre
SE. Paletten av färger trä
GB.The palette of colors wood

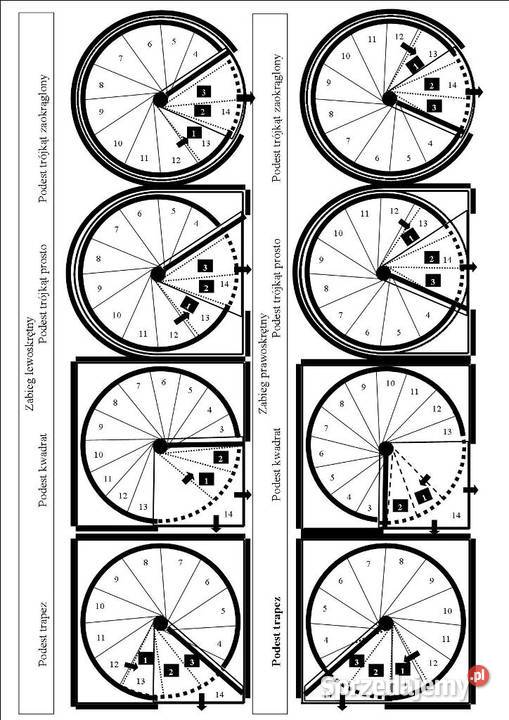

PL. Konfiguracja układ schodów
