There are two types of platforms: triangular, adapted to the opening in the square and round ceiling, and trapezoidal, for the square hole. The model of stairs has both left and right treatment, that's why many assembly concepts are possible due to the universal form of these stairs.

The stairs are adjusted only after the ordering of the height at which the platform is to be located - flush with the floor on the upper ceiling. Non-standard orders are possible to implement in consultation with the manufacturer, after sending the appropriate projections of the room where the stairs are to be located.

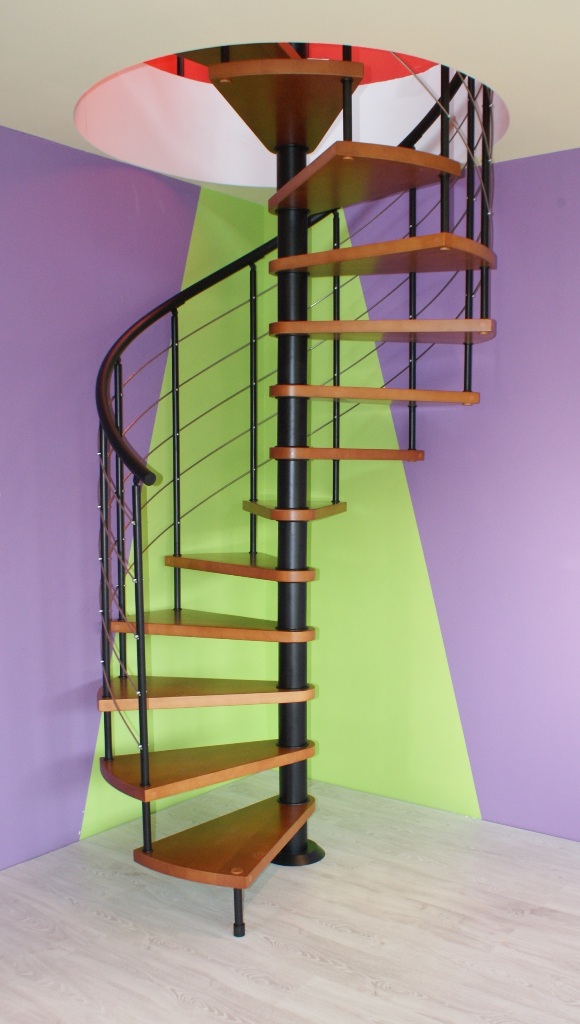

Model Bavaria 120 cm
Technical description
number of elements: 13 pieces (12 pcs. steps + 1 landing)
storey height: 260.0 / 322.0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
thickness of the step: 40 mm
width of the step: usable 500 mm (between the column and the railing),
type of wood: solid beech
wood color: (pictorial photo of the color of natural Oranż Br-3027). You can choose a different color from the color palette in the price of stairs,
metal color: black matt structure (RAL 9005)
central column cover: metal
One-sided railing + on the landing
posts (metal) 25 mm
let in a degree
filling the rod with stainless steel (5 pcs)
handrail plastic / black matt

Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: post@coratrapp.no
We will prepare a special offer and send to e-mail.



Completion date:
- Delivery without assembly - 2 / 3 weeks
- Delivery assembly - 3 / 6 weeks
Contact: technical advice directly
In hours: 9.00 til 20.00 hours

e-mail: post@coratrapp.no      Contact: +47 939 89 186
