SPIRAR STAIRS MODEL BERLIN 04 S 120 CM
SPIRAR STAIRS MODEL BERLIN 04 S 120 CM
- Units in box: 1 kpl.
Spiral stairs CORA model Berlin 04 S 120 cm
Hole in the ceiling-minimal: round 130 cm, square 130 x 130 cm, the height of the stairs 260,0-299,0 cm (landing flush with the upper floor), the height of the stairs 280,0-322,0 cm (landing below the upper floor), height solid step 20,0 / 23,0 cm, width of usable use 500 mm (between the column and the railing, stair operation: left or right
- Description
- Reviews
- Attachment
- Specification
- Catalog
Spiral stairs CORA model Berlin 04 S 120 cm - 13 elements (12 pcs. step+1 landing)
Stairs from a Polish manufacturer, prepared for self-assembly. This model is adapted to the opening in the ceiling with side or diameter of 130 cm. The elements are made of solid beech wood (color to choose) and black, matte steel.
The stairs are prepared in a universal way, with the left and right ones, which allows the use of many assembly concepts within one model. Some of these ideas are presented by the manufacturer in additional materials. Depending on the shape of the hole in the ceiling, there is an option to order different shapes of platforms. A triangular landing has been designated for a round hole, and a triangular and trapezoidal for a square hole.
When purchasing stairs, it is necessary to give the preferred height calculated with the thickness of the ceiling, where the hole is located. In case when none of the available stair models does not match the customer's expectations, it is possible to make an unusual custom-made model - in this case, please contact the manufacturer.
Polish producer of spiral, winding and spiral stairs CORA
Available sizes of stairs are diameter of 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 cm and more
Load carrying capacity: 185 kg load per one step.
Stair treatment: left-handed or clockwise looking from the first step
Technical parameters
Opening in the ceiling - minimal stairs with a diameter of 120 cm can be used for:
round hole 130 cm,
square hole 130x130 cm, rectangular hole (but shorter side larger than the diameter of stairs by 10 cm)
directly adjacent to the mezzanine,
Types of landing
To the hole:
- round: 130 cm - triangular landing,
- square: 130 x 130 cm - triangular, trapezoidal landing,
Model Berlin 04 S 120 cm
Technical description
Number of elements: 13 pieces (12 pcs. steps + 1 landing)
Storey height: 260,0 / 322,0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
Step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
Thickness of the step: 40 mm
Width of the step: usable 500 mm (between the column and the railing),
Type of wood: solid beech

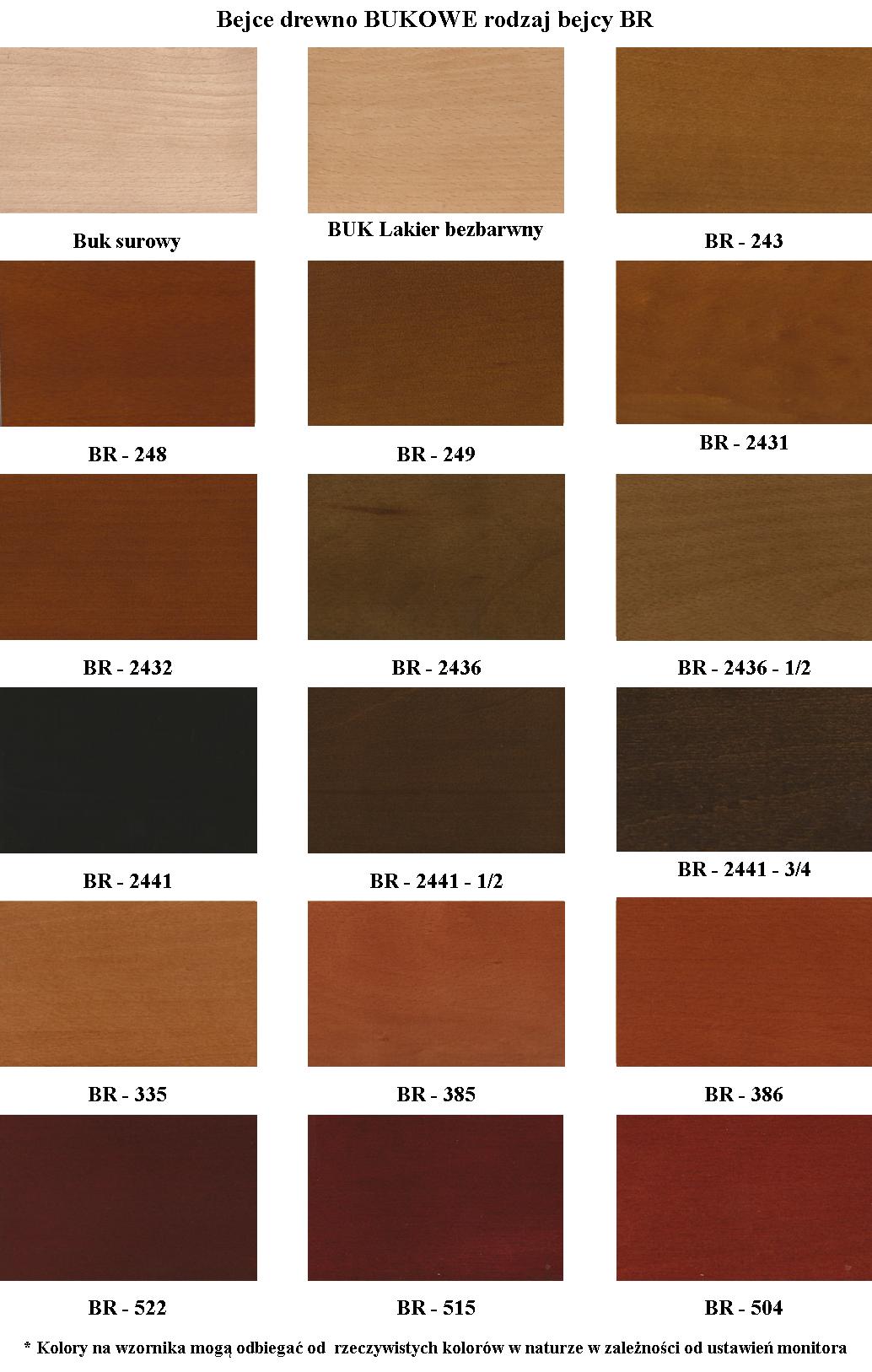

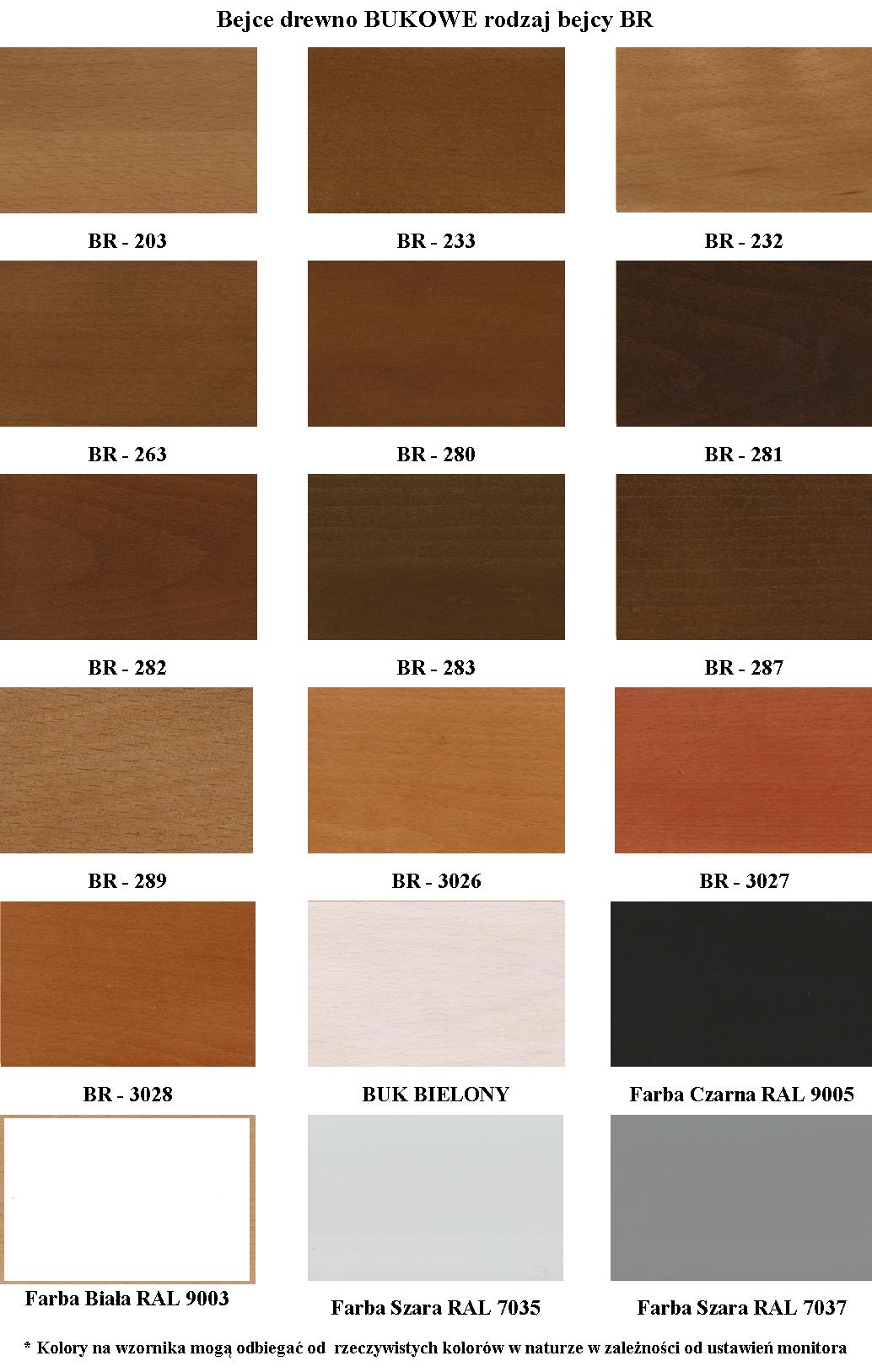

Wood finish (color): Illustrative image (on beech / Orzech br-280) or other colors from the wood color palette or matte paint acc. RAL
Metal color: black matt structure (RAL 9005)
Central column cover: wood
One-sided railing + on the landing
Vertical balusters, metal forged
Recessed in stepa
After 4 pieces per steps
Handrail curved 50 mm
Available sizes of stairs are diameter of 110, 120, 130, 140, 150, 160, 170, 180, 190, 200 cm and more
Load carrying capacity: 185 kg load per one step.
Stair treatment: left-handed or clockwise looking from the first step
Technical parameters
Opening in the ceiling - minimal stairs with a diameter of 120 cm can be used for:
round hole 130 cm,
square hole 130x130 cm, rectangular hole (but shorter side larger than the diameter of stairs by 10 cm)
directly adjacent to the mezzanine,
Types of landing
To the hole:
- round: 130 cm - triangular landing,
- square: 130 x 130 cm - triangular, trapezoidal landing,
Model Berlin 04 S 120 cm
Technical description
Number of elements: 13 pieces (12 pcs. steps + 1 landing)
Storey height: 260,0 / 322,0 cm
Attention !!!
When buying stairs, specify the height (bottom floor / upper floor), because the step height is not adjustable (fixed). We will make stairs to size.
The landing can be used:
- at a height: from 260 cm to 299 cm - (13 elements) / landing flush with the upper floor,
- at height: from 280 cm to 322 cm - (13 elements / 14 levels) / landing below the upper floor,
Step height: not adjustable (fixed) from 20,0 to 23,0 cm (made to measure)
Thickness of the step: 40 mm
Width of the step: usable 500 mm (between the column and the railing),
Type of wood: solid beech
Wood finish (color): Illustrative image (on beech / Orzech br-280) or other colors from the wood color palette or matte paint acc. RAL
Metal color: black matt structure (RAL 9005)
Central column cover: wood
One-sided railing + on the landing
Vertical balusters, metal forged
Recessed in stepa
After 4 pieces per steps
Handrail curved 50 mm
Wood posts: 60x60 cm
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
Non-standard stairs to be agreed
If you can not adjust the stairs according to the below schemes, we will make unusual stairs to measure.
We will make the project, the price of the stairs based on:
- views of the cross-section of the building with actual dimensions,
- or please create a sketch with real dimensions and send it to the e-mail address: coratrapp@gmail.com
We will prepare a special offer and send to e-mail.
Contact: technical advice directly
In hours: 9.00 til 20.00 h. Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
In hours: 9.00 til 20.00 h. Tel. mobil: +47 939 89 186, e-mail: coratrapp@gmail.com
e-mail: post@coratrapp.no Contact: +47 939 89 186
There are yet no reviews for this product.
PL. Paleta kolorów drewna
NO. Paletten av farger tre
SE. Paletten av färger trä
GB.The palette of colors wood

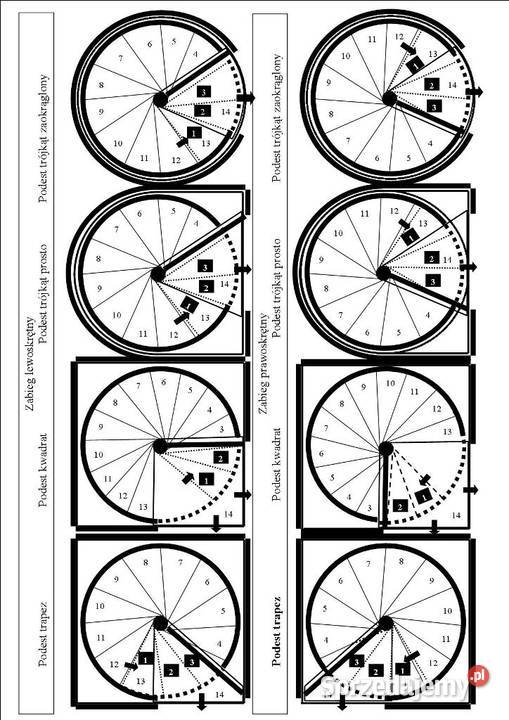

PL. Konfiguracja układ schodów
